Technical diagram apps suck

Let’s fix that.

Every interface, VLAN and ASN on your network diagram. Software architecture that lays itself out. Then share either without leaking the details.

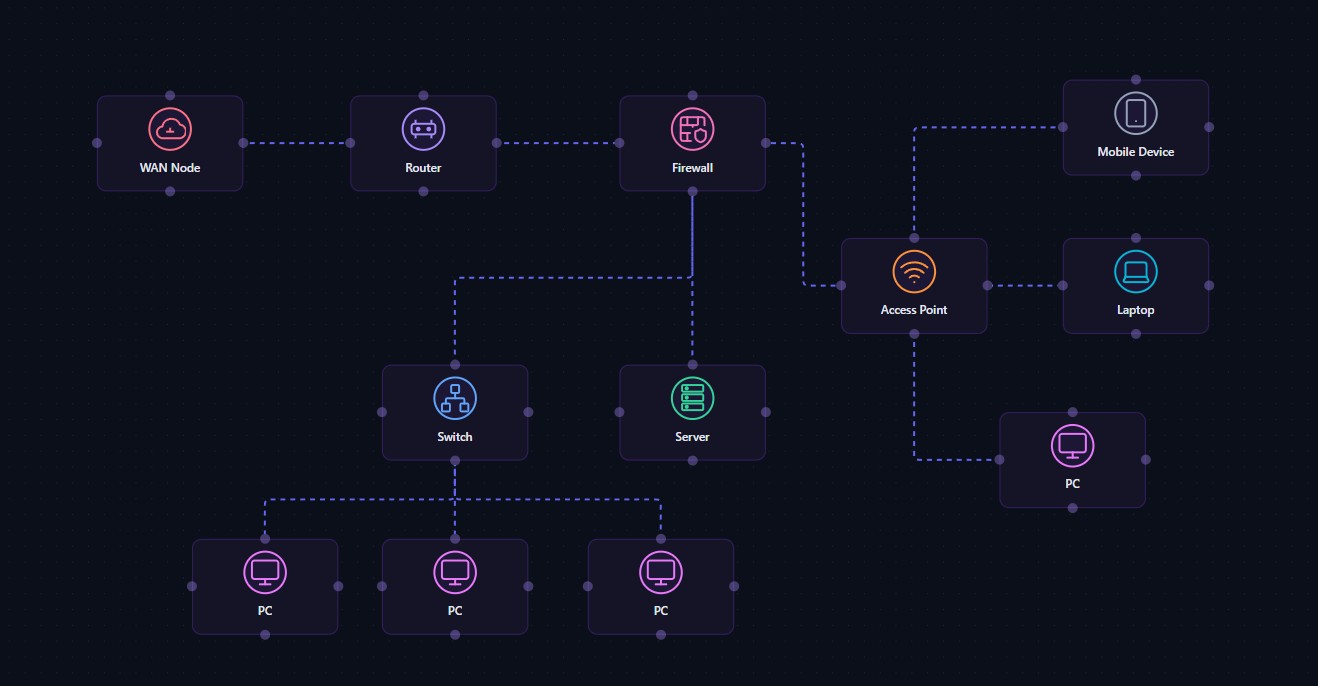

Sample network

Sample architecture

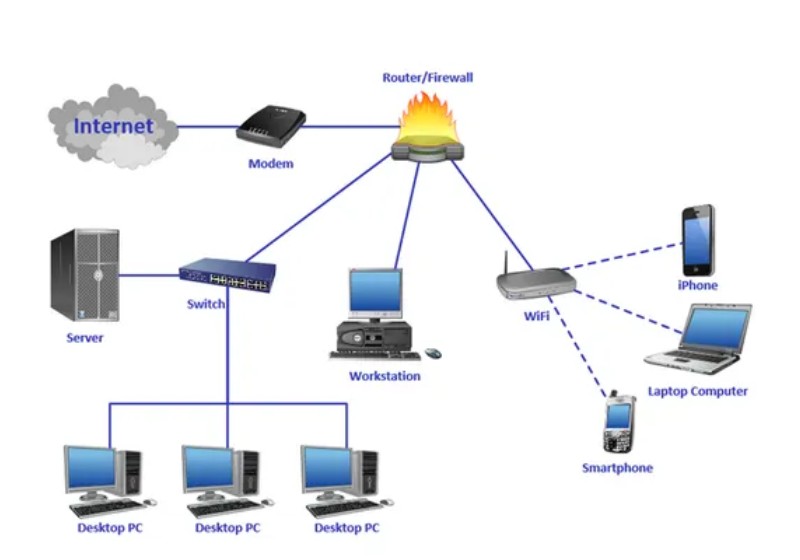

The Old Way vs The Conexxio Way

Visio is ugly, Site24x7 is far too complex, Visme is far too simple and yEd is dated. Why keep searching?

Send a diagram to a vendor, contractor or client without handing over your addressing.

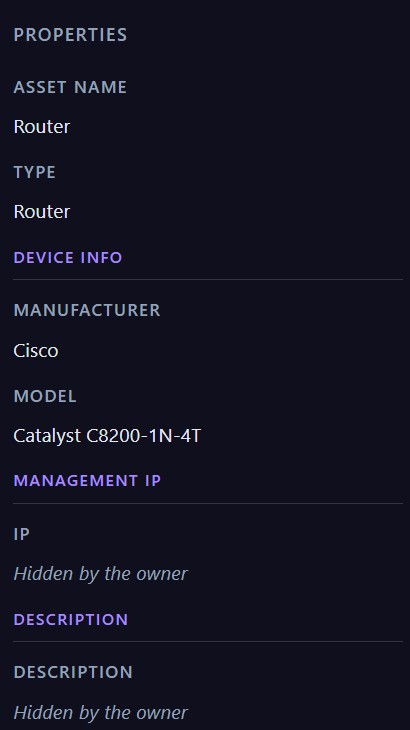

Redacted links remove IPs, subnets, AS numbers, circuit IDs, providers and descriptions from the shared copy before it leaves your browser.
Full links keep every detail, protected by a password and encrypted in your browser. The password is never sent or stored.

Draw the services, apps and databases behind your network, without dragging a single box into place.

Automatic layout. Add nodes and connect them: the diagram arranges itself, top to bottom or left to right, and tidies up after every change.
Groups for systems and teams. Put nodes in groups, groups in groups, and connect to a group or to anything inside it.
Saved and shared like your network diagrams. Cloud saves of its own, and redacted or password-protected links.

Check mate.

TabsProSplit a network by site, floor or layer, all in one file.
Search every tabCtrl+F finds any node or connection and takes you straight to it.
Jump buttonsProA button node takes you to the matching device on another tab.
GroupsBox related devices together, with a name and a description.

Start free and upgrade anytime. All plans include our full set of node and connection tools.

Free

£5 /mo

£15 /mo

Best value
